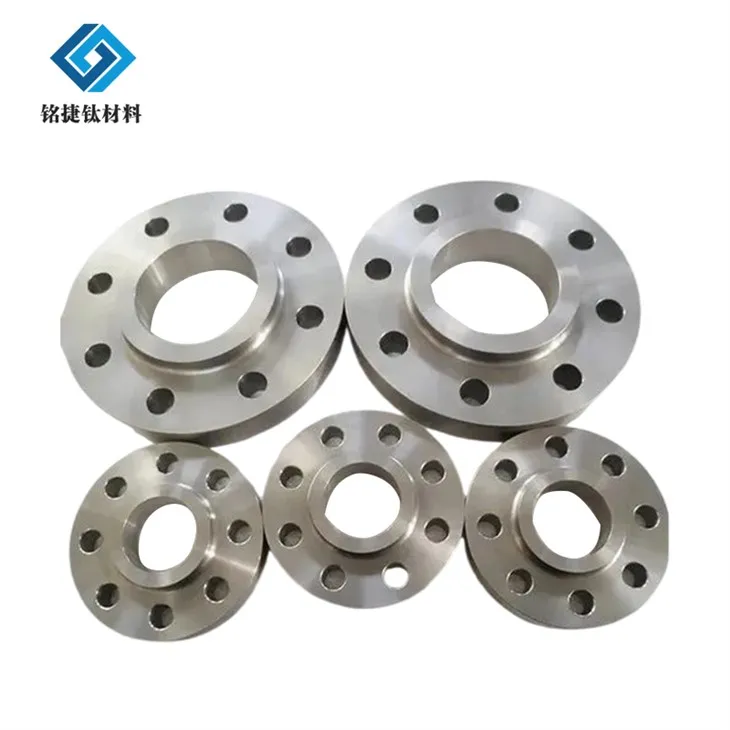

Gr4 Titanium Flange

Product name:Gr4 titanium Flange
Size: DN10 ~ DN2000
Pressure: 0.25mpa ~ 32mpa
Surface: RF, FF, MFM, TG, RJ, etc.
Features:Corrosion resistant,Accurate dimensions,Can sustain high pressure & temperature load
Specification:ASTM B 363/ ASME SB 363
Size:½” NB – 48” NB
Class:150#, 300#, 600#, 900#, 1500#, 2500#, etc

Send Inquiry

Product Introduction

What's the Gr4 titanium flange

The Gr4 titanium flange is a heavy-duty industrial pipe connector.It is manufactured by the highest grade commercial pure titanium (UNS R50700),and it is an important type of titanium flange. This flange uses Gr4 (Grade 4) titanium material, which is corresponding to TA3 (Chinese grade) in international standards or Ti 0.2Pd (titanium alloy containing trace amounts of palladium), these material of the titanium flange has high strength and good corrosion resistance, which make it suitable for industrial applications with medium strength requirements and corrosive environments. Its material specifications comply with the UNS R50700 standard, In order to ensure high purity and consistency of the material,we comply with the UNS R50700 standard when we manufacture the Gr4 titanium flange.

These flanges possess excellent yield strength and weldability, which makes them and ideal choice for high-pressure applications in chemical, marine, and aerospace industries. Due to their superior alkali and acid resistance, Gr4 titanium flanges perform exceptionally well in extreme conditions such as pipeline systems transporting corrosive media, seawater desalination, offshore platforms, and aerospace applications,. It can withstand both high pressure and highly corrosive environments.

The specifications of titanium flange

Dimension	ANSI/ASME B16.5, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Specification	ASTM B 363/ ASME SB 363
Size	½" NB – 48" NB
Class	150#, 300#, 600#, 900#, 1500#, 2500#, etc
Pressure	DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, etc

Chemical Composition

What should be considered when choosing a flange type?

The following four points are aspects we need to pay attention to.

Pressure rating and temperature requirements

Pressure rating and temperature are the core indicators for selecting titanium flanges. The pressure rating refers to the maximum pressure that the flange can withstand, and the temperature requirement refers to the highest temperature it can tolerate. It is essential to ensure that the flange parameters match the system operating conditions; otherwise, it leaks or may damage the equipment.

Size and specifications match

Flange dimensions must be compatible with the piping system, including outer diameter, thickness, and bolt hole parameters. Select a flange with the same diameter as the pipe to ensure a secure and leak-free connection.

Material selection and corrosion resistance

Titanium flanges have strong corrosion resistance and are suitable for harsh environments. High-grade alloys such as 316L or 317L are preferred, and specific grades (such as 304 or 316) should be selected based on the type of medium (e.g., acid, alkali) and temperature to ensure long-term safe use.

End face, connection method and performance advantages

The flange face (such as raised face or circumferential face) and surface finish must match the gasket to ensure a tight seal. The connection method (such as butt welding or threaded connection) should be compatible with the piping system, taking into account pressure, vibration, and ease of maintenance. The corrosion resistance and high strength of titanium flanges make them an ideal choice for chemical, aerospace, and other industries.

the different types of flange

Threaded Flanges

Threaded flanges, also known as threaded connection flanges, have threads in their flange holes that can be used with corresponding male threads on pipes.

Socket-Weld Flanges

The socket weld flange has an internal threaded socket into which the pipe can be inserted. The fillet weld is welded from the outside of the pipe.

Slip-On Flanges

The sliding flange has a hole that matches the outer diameter of the pipe, through which the pipe can pass. The flange is fitted onto the pipe and fillet welded from both the inside and outside.

Lap Joint Flanges

A lap flange consists of two parts: a short pipe end and a movable gasket flange. The short pipe end is butt-welded to the pipe, while the gasket flange can move freely on the pipe.

Weld Neck Flanges

Weld neck flanges are the most commonly used flange connection method in process piping. Because they are butt-welded to the pipeline, they offer the highest connection integrity.

Blind Flanges

A blind flange is a blind flange with bolt holes. These flanges are typically used in conjunction with other types of flanges to isolate piping systems.

Screwed Flange

3-thread flanges are used to connect other components in non-critical applications and low-pressure environments without welding.

Reducing Flange

A reducing flange consists of a flange with a specific diameter and another flange with a different inner diameter (smaller diameter). It is used to change the diameter of different pipes in a piping system.
