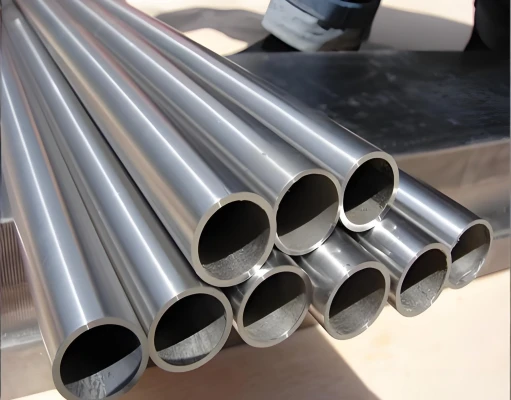

GR1 titanium welded pipe





Gr1 titanium welded pipe is a kind of welded pipe made of pure titanium material using the American standard grade GR1, which is characterized by light weight, high strength, corrosion resistance, etc., as an industrial grade pure titanium, it has the highest purity and the best ductility, but the mechanical strength is relatively low, in line with ASTM B862 standard. This welded pipe is widely used in petrochemical, electric power and nuclear energy, aerospace and other fields, and is very suitable for the manufacture of automobile exhaust pipes, such as mid-section pipes, tail section muffler housings, exhaust tail nozzles, connecting elbows and other components. Additionally, after high-temperature oxidation, titanium welded pipes change color and take on a beautiful metallic luster such as blue, purple, and gold, making them visually appealing for DIY users. Most importantly, it has excellent high-temperature performance and is not easy to deform, making it an ideal choice for high-temperature exhaust systems.







Chemical composition	Ti≥99.5%,O≤0.18%,Fe≤0.2%,C≤0.08%,N≤0.03%,H≤0.015%
Mechanical properties	Tensile strength ≥ 240MPa, elongation ≥ 24%,yield strength ≥170MPa,
Standard	ASTM B862
Available specifications	Dia:4.0mm ~ 300mm  Length:50mm ~ 6000mm
Surface state	Pickling surface, bright surface



Product name	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Grade 1	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %









Titanium has excellent corrosion resistance and can withstand corrosion from seawater, acids, and most chemical media.


Titanium welded tubes have an excellent strength-to-weight ratio and are one of the lightest structural materials currently available.


Titanium is a biocompatible material that has good compatibility with human tissues and bones.


Titanium exhibits excellent stability at high temperatures, maintaining its strength and stability even in high-temperature environments.


Titanium is a non-magnetic material, making it suitable for frequency-operating applications where magnetic sensitivity is a concern.


Titanium has good formability and is easy to process into various shapes.




Performance	GR1 Titanium Welded Pipe	Stainless steel pipe	Carbon Steel Pipe
Density	4.51 g/cm³	7.9 g/cm³	7.85 g/cm³
Corrosion resistance	Outstanding	medium	Low
High temperature strength	Outstanding	medium	Low
Weight Control	Outstanding	medium	medium
Appearance	Presenting various oxidized colors	Silver Gray	Black or coated





Baoji Mingjie Titanium Materials Technology Co., Ltd.'s titanium welded pipes are truly "hardcore players" in the industry! From equipment to team to quality, they exude professionalism in every aspect. Today, let's talk about their three major advantages.

 The equipment is top-notch, and the technology is cutting-edge.
Mingjie Titanium Materials' equipment is truly top-notch! Their CNC shearing unit for thick plates can easily handle titanium plates 6 meters wide and 12 meters long, with precision comparable to a needle in a millimeter, and an annual shearing capacity of 5,000 tons is no problem. The annealing furnace reaches temperatures of 1050℃, with a 12.5-meter-long chamber and a 50-ton loading capacity. Once the titanium plate is "steamed" inside, all structural defects disappear-deformation and cracking? Absolutely not! There are also shot blasting machines and CNC precision polishing machines, achieving a mirror-like surface finish, dust-free and pollution-free. Oxide scale? Simply polish it off! This equipment allows titanium welded pipe diameters to exceed 1020mm, maximizing its application range.

 The team is excellent and highly experienced.
Mingjie Titanium Materials' team is comprised entirely of industry elites! Experts and top-tier technicians, with experience as rich as seasoned traditional Chinese medicine practitioners, possess an unparalleled understanding of titanium's properties. Welding titanium pipes? Most vulnerable to the interference of oxygen, nitrogen, and hydrogen. They utilize high-purity argon gas for protection, ensuring thorough protection of the heat-affected zone. Embrittlement cracking? Already prevented! The team has a deep understanding of titanium pipes' "temperament," handling scenarios from chemical engineering to aerospace. Customer needs? Fulfilled in no time.

 High quality, durable and robust
Titanium welded pipe quality is absolutely top-notch! Its strength surpasses stainless steel, yet its density is half that of stainless steel. Used in aerospace, its thinner walls result in greater pressure resistance, lighter weight, and a direct increase in launch payload. Corrosion resistant? Rust-free for three years on marine platforms, and a 30% reduction in maintenance costs over ten years for chemical pipelines, lowering annual maintenance costs from 2 million to 1.4 million – saving money and worry. Wide temperature range, remaining stable from -253℃ to 500℃, perfect for liquid oxygen transport. 99.8% sealing performance after 50,000 thermal cycles – aluminum pipes would crack long ago. Dimensionally stable, undeformed by temperature fluctuations, extreme environments? A piece of cake!

In short, Mingjie Titanium Materials' titanium welded pipes, with their combined strengths in equipment, team, and quality, are undoubtedly the "magic weapon" for industrial upgrading!
